2010 SUZUKI AN Burgman 125 Scooter pictures, specifications

SUZUKI Scooter pictures

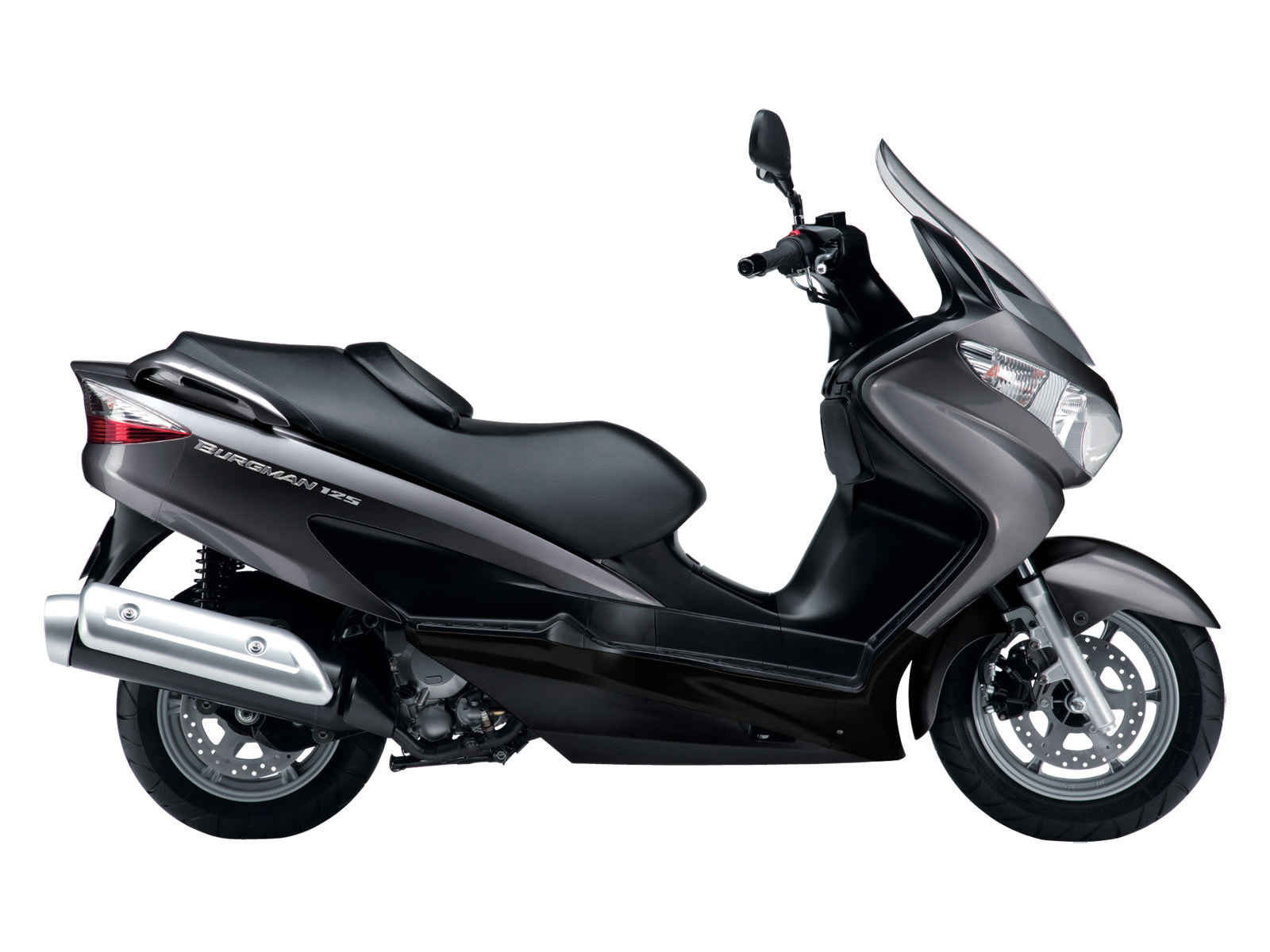

2010 SUZUKI AN Burgman 125
Click Thumbnail to download (size 1600 x 1200 pixels)




- It´s not just the sleek lines and urbanely polished design that catch the eye, you can even stow two helmets or an attaché case neatly out of sight in the spacious underseat storage compartment. -

Specifications

Model: Suzuki Burgman 125

Year: 2010

Category: Scooter

Engine and transmission

Displacement: 124.00 ccm (7.57 cubic inches)

Engine type: Single cylinder

Stroke: 4

Compression: 11.6:1

Bore x stroke: 57.0 x 48.8 mm (2.2 x 1.9 inches)

Fuel system: Injection

Fuel control: SOHC

Ignition: CDI

Starter: Electric

Lubrication system: Wet Sump

Cooling system: Liquid

Gearbox: Automatic

Transmission type final drive: Belt

Clutch: Dry shoe, automatic, centrifugal type

Physical measures

Dry weight: 148.0 kg (326.3 pounds)

Weight incl. oil, gas, etc: 159.0 kg (350.5 pounds)

Seat height: 735 mm (28.9 inches) If adjustable, lowest setting.

Overall height: 1,240 mm (48.8 inches)

Overall length: 2,055 mm (80.9 inches)

Overall width: 740 mm (29.1 inches)

Wheelbase: 1,465 mm (57.7 inches)

Chassis and dimensions

Front suspension: Telescopic, coil sprung, oil damped

Rear suspension: Swingarm type, coilspring, oildamped

Front tyre dimensions: 110/90-M13

Rear tyre dimensions: 130/70-P,12

Front brakes: Single disc. Hydraulic

Rear brakes: Single disc. Hydraulic

Other specifications

Fuel capacity: 11.00 litres (2.91 gallons)

Florida Personal Injury and Catastrophic Accident Attorneys Abramowitz, Pomerantz & Coffey, P.A. – Injury Law Firm floridainjurylawyers.com When you or a family member has been seriously injured or killed due to the actions or negligence of an individual, corporation or other entity, you need to know there is someone you can turn to for help. For more than 25 years the experienced personal injury lawyers of Abramowitz, Pomerantz & Coffey, P.A. have been helping injured victims whose injuries are casued by auto and truck accidents, catastrophic injuries, defective and dangerous products, slip-and-falls, nursing home abuse and dog bites throughout South Florida and the United States. We are committed to our clients and upholding their constitutional right to seek justice. We intentionally manage our caseload to ensure quality and personalized client attention. We realize that our client has only one case and often one opportunity for a successful outcome. We are self-funded (no lines of credits or loans) and only accept cases on a contingency fee basis. We spend every dollar we need to help our client and their case. Our attorneys have handled numerous high profile and precedent-setting cases and have achieved numerous multimillion-dollar settlements and verdicts on behalf of our clients. We often take on cases that other firms pass on, refuse to take, or fail to identify as a case of true opportunity. We uncover every case opportunity by rolling up our sleeves, conducting thorough research, using the latest technology, out-of-the-box-thinking and having personal knowledge of case law. Some clients and referral attorneys come to us thinking they have no case or that it is a specific type of case. We often discover that it is another type and often bigger case. We say, “Tell us your story – you may have a great case that you weren’t aware of”. Our firm is deeply rooted in values, integrity and the pursuit of justice. We strive to make a positive impact on our society and consumer safety. For more information or to discuss your potential claim, contact us or call us at 954-572-7200. We welcome your inquiries. Fort Lauderdale Litigation Law Firm focusing on personal injury and wrongful death, auto accidents, catastrophic injuries, medical malpractice, defective products, premises liability and defective drugs throughout the United States and Florida including Fort Lauderdale, Coral Springs, Plantation, Margate, Weston, Hollywood, North Miami Beach, South Miami, Coral Gables, and Palm Beach, Broward and Miami-Dade counties.

2007 SUZUKI AN Burgman 125 Scooter pictures, specifications

SUZUKI Scooter pictures

2007 SUZUKI AN Burgman 125
Click Thumbnail to download (size 1600 x 1200 pixels)

First impressions count, whether you´re meeting a client or a date for the evening

Specifications

Model: Suzuki Burgman 125

Year: 2007

Category: Scooter

Rating: 50.9 out of 100.

Engine and transmission

Displacement: 124.00 ccm (7.57 cubic inches)

Engine type: Single cylinder

Stroke: 4

Compression: 11.6:1

Bore x stroke: 57.0 x 48.8 mm (2.2 x 1.9 inches)

Fuel system: Injection

Fuel control: SOHC

Ignition: Overall length:

Starter: Electric

Lubrication system: Wet Sump

Cooling system: Liquid

Gearbox: Automatic

Transmission type final drive: Belt

Physical measures

Dry weight: 148.0 kg (326.3 pounds)

Seat height: 735 mm (28.9 inches) If adjustable, lowest setting.

Overall height: 1,240 mm (48.8 inches)

Overall length: 2,055 mm (80.9 inches)

Overall width: 740 mm (29.1 inches)

Wheelbase: 1,465 mm (57.7 inches)

Chassis and dimensions

Front suspension: Telescopic, coil sprung, oil damped

Rear suspension: Swingarm type, coilspring, oildamped

Front tyre dimensions: 110/90-M13

Rear tyre dimensions: 130/70-P,12

Front brakes: Single disc

Rear brakes: Single disc

Other specifications

Fuel capacity: 11.00 litres (2.91 gallons)

Florida Personal Injury and Catastrophic Accident Attorneys Abramowitz, Pomerantz & Coffey, P.A. – Injury Law Firm floridainjurylawyers.com When you or a family member has been seriously injured or killed due to the actions or negligence of an individual, corporation or other entity, you need to know there is someone you can turn to for help. For more than 25 years the experienced personal injury lawyers of Abramowitz, Pomerantz & Coffey, P.A. have been helping injured victims whose injuries are casued by auto and truck accidents, catastrophic injuries, defective and dangerous products, slip-and-falls, nursing home abuse and dog bites throughout South Florida and the United States. We are committed to our clients and upholding their constitutional right to seek justice. We intentionally manage our caseload to ensure quality and personalized client attention. We realize that our client has only one case and often one opportunity for a successful outcome. We are self-funded (no lines of credits or loans) and only accept cases on a contingency fee basis. We spend every dollar we need to help our client and their case. Our attorneys have handled numerous high profile and precedent-setting cases and have achieved numerous multimillion-dollar settlements and verdicts on behalf of our clients. We often take on cases that other firms pass on, refuse to take, or fail to identify as a case of true opportunity. We uncover every case opportunity by rolling up our sleeves, conducting thorough research, using the latest technology, out-of-the-box-thinking and having personal knowledge of case law. Some clients and referral attorneys come to us thinking they have no case or that it is a specific type of case. We often discover that it is another type and often bigger case. We say, “Tell us your story – you may have a great case that you weren’t aware of”. Our firm is deeply rooted in values, integrity and the pursuit of justice. We strive to make a positive impact on our society and consumer safety. For more information or to discuss your potential claim, contact us or call us at 954-572-7200. We welcome your inquiries. Fort Lauderdale Litigation Law Firm focusing on personal injury and wrongful death, auto accidents, catastrophic injuries, medical malpractice, defective products, premises liability and defective drugs throughout the United States and Florida including Fort Lauderdale, Coral Springs, Plantation, Margate, Weston, Hollywood, North Miami Beach, South Miami, Coral Gables, and Palm Beach, Broward and Miami-Dade counties.

SUZUKI scooter pictures. 2005 AN 400 Burgman

SUZUKI Scooter pictures

2005 SUZUKI AN 400 Burgman
Click Thumbnail to download (size 1600 x 1200 pixels)

The Burgman 400 is ideal for RVers. Our intention was to carry this scooter on a hitch platform installed either on the front bumper of our F-550 truck, or on the rear bumper of our fifth wheel (we sold it before finalizing our decision, but were leaning toward mounting on the truck's front bumper).

The Burgman weighs about 430 lbs. with fuel, so it requires a strong bumper, hitch, and ramp, but at the same time it is not as heavy as the larger motorcycles. The advantage of the Burgman 400 over the smaller, lighter scooters is that it is able to keep up with highway traffic with two adults.

Specifications
Model Type: Touring Scooter

Engine
Engine Type: Single-Cylinder
Cylinders: 1
Engine Stroke: 4-Stroke
Cooling: Liquid
Valves: 4
Valves Per Cylinder: 4
Valve Configuration: SOHC
Compression Ratio: 10.2:1
Starter: Electric
Fuel Requirements: Regular
Fuel Type: Gas

Transmission
Transmission Type: Continuously Variable (CVT)
Primary Drive (Rear Wheel): Belt

Wheels & Tires
Front Tire (Full Spec): 110/90 R13
Rear Tire (Full Spec): 130/70 R13

Brakes
Front Brake Type: Hydraulic Disc
Rear Brake Type: Hydraulic Disc

Technical Specifications
Wheelbase (in/mm): 62.6 / 1590
Fuel Capacity (gal/l): 3.4 / 13
